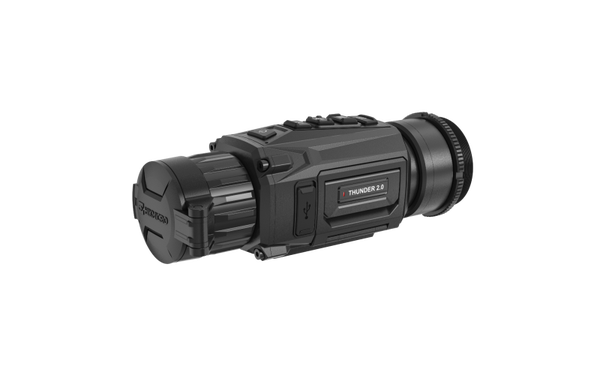

Hikmicro Thunder TE19C 2.0 Clip-on Warmtebeeld Voorzetkijker

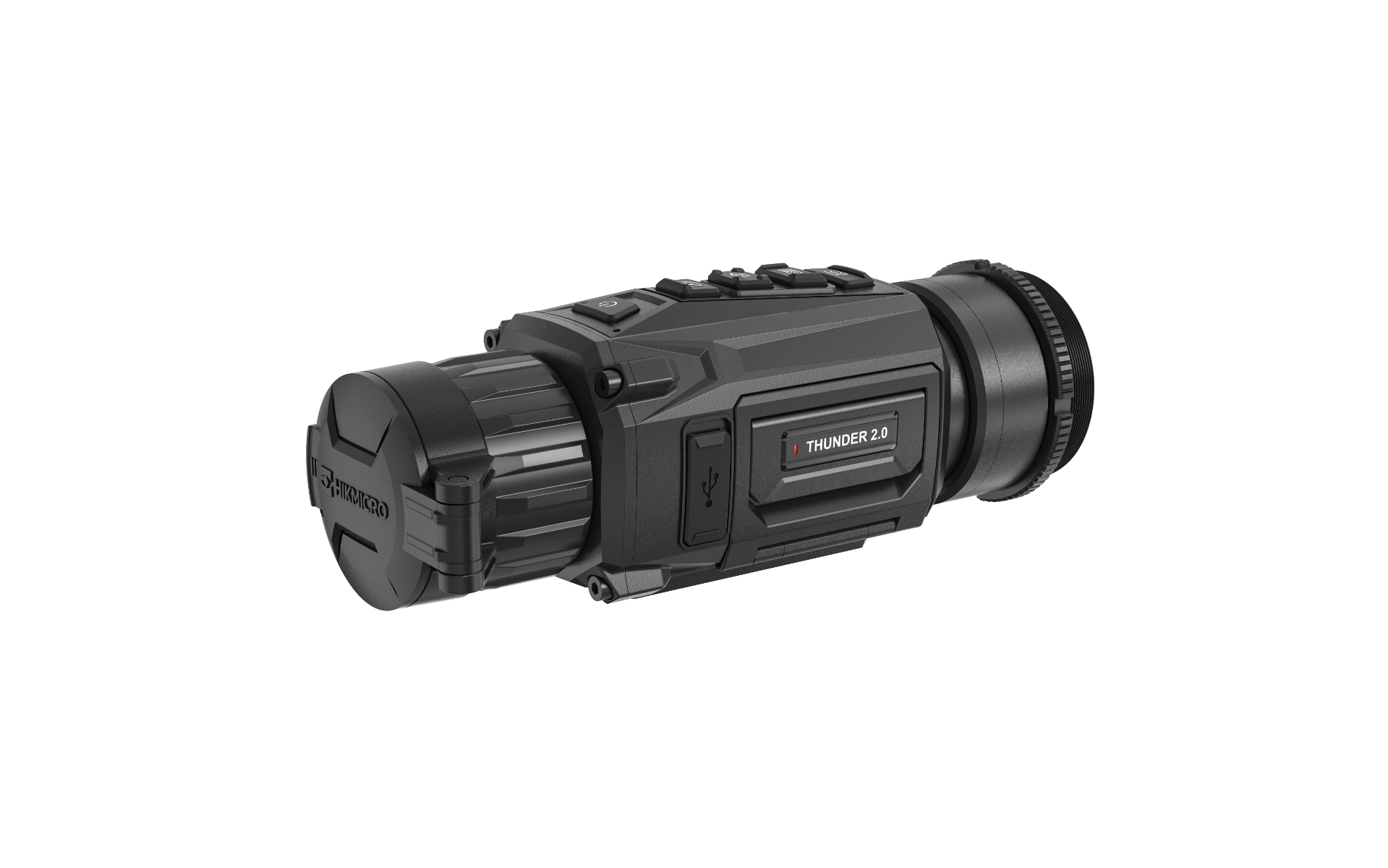

HIKMICRO THUNDER 2.0 TE19C Clip-on

HIKMICRO THUNDER TE19C 2.0 Thermal Monocular has a 256 × 192 thermal detector and a 1024 × 768 OLED display, which provides clear images under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
With an extended operation time, the scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

• 256 × 192 resolution with 12 μm sensor
• 1024 × 768 resolution 0.39-inch OLED display
• Supports image brightness and tone adjustment
• Up to 10 hours of continuous operation
• Replaceable and rechargeable Li-ion battery
• Supports audio and recoil-activated recording
• High shock resistance up to 1000 g/0.4 ms

Game in Sight, Like Never Before



Ultra Clear Image, Impressive Detail Recognition
High Thermal Sensitivity, Perfect Detail Recognition
With an extremely high thermal sensitivity (NETD<35mK) detector combining a powerful thermal camera of 256x192 @12μm @ F1.0, it ensures informative images and an enhanced identification capability even under the slightest temperature differences.

Magnesium Alloy Design Meeting Long-lasting Use
Magnesium alloy design with lightweight, compact size and improved stability to meet the long-lasting use.

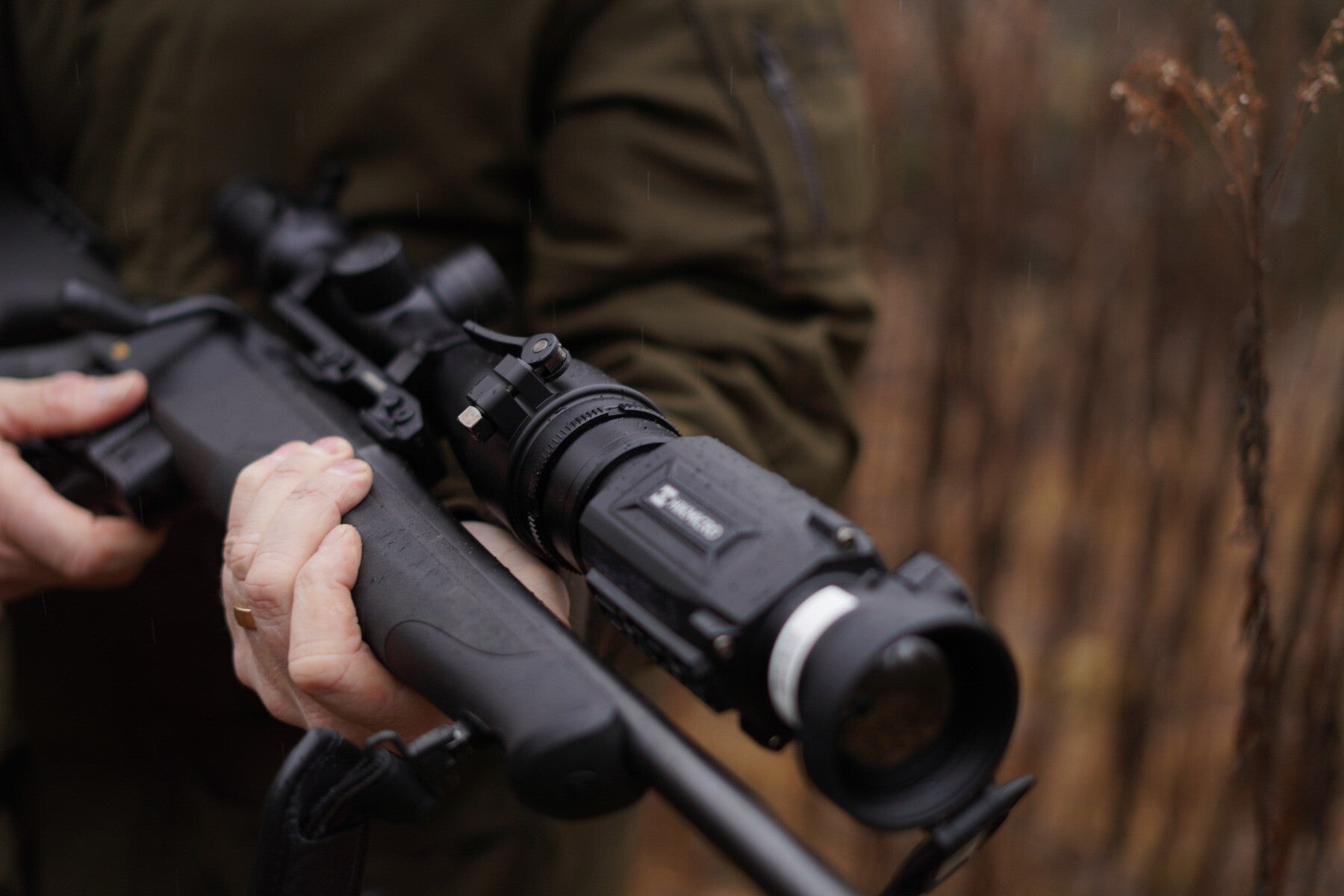

Easy to Mount and Demount

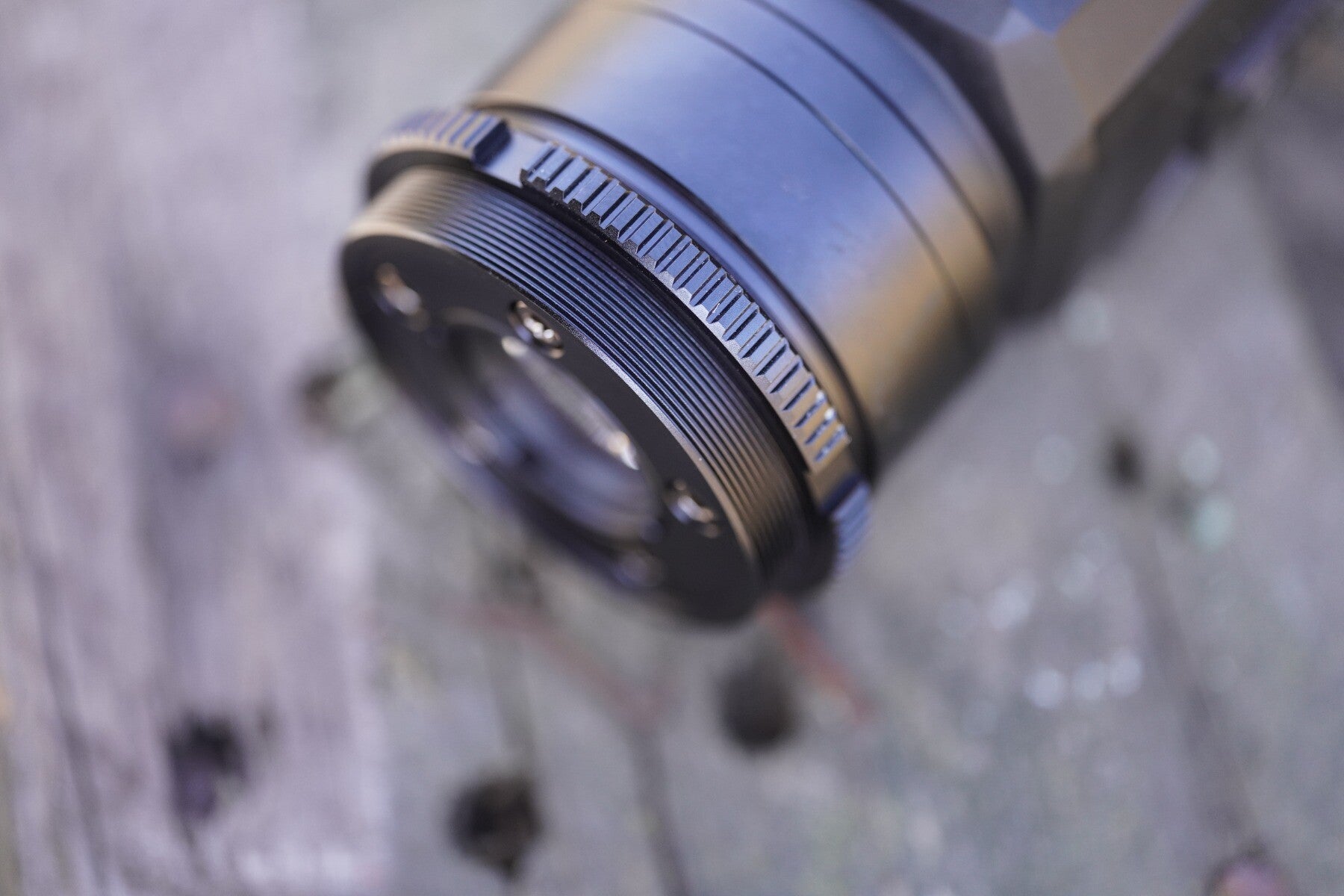

Just detach, turn, and reattach, it is easy to mount and demount only in a few steps. M52*0.75 thread is supported to be compatible with third-party adapters.

Powerful Battery Performance, Game Non-stop

Replaceable and Rechargeable High Capacity Battery

The new battery pack extends working time up to 10h.
A spare pack gives the freedom to operate as long as needed even for a full day.
Besides, the battery pack performs superior to others, especially in a low-temperature environment.

New Battery Charging Method
The battery is able to charge both in the device and in the charging base. Plug and go.

Software Revolution More Easily Brings An Accurate Visual Game
Personalized Settings Available to the Suitable Visual Experience

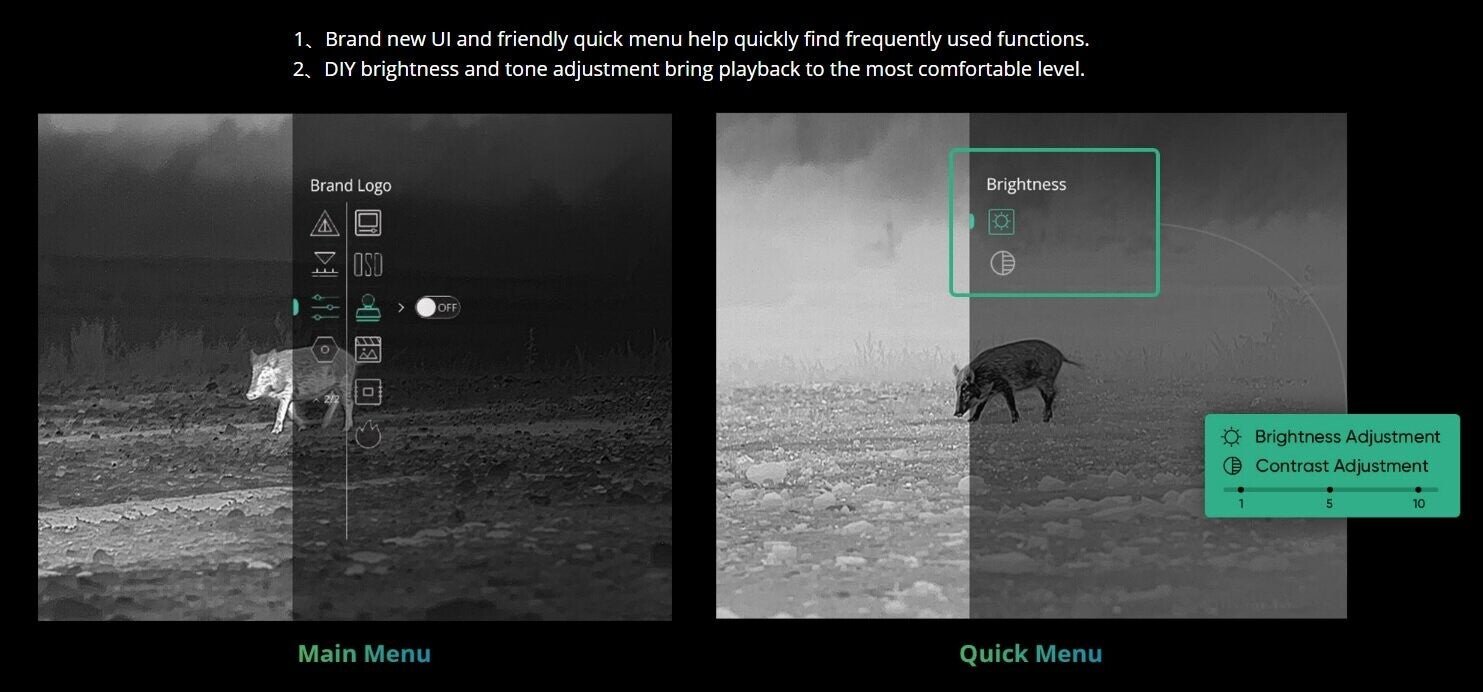

1、Brand new UI and friendly quick menu help quickly find frequently used functions.
2、DIY brightness and tone adjustment bring playback to the most comfortable level.

Multiple Zeroing Profiles
5 zeroing profiles can be configured and saved for a greater convenience.

Sharing Your Exciting Moments

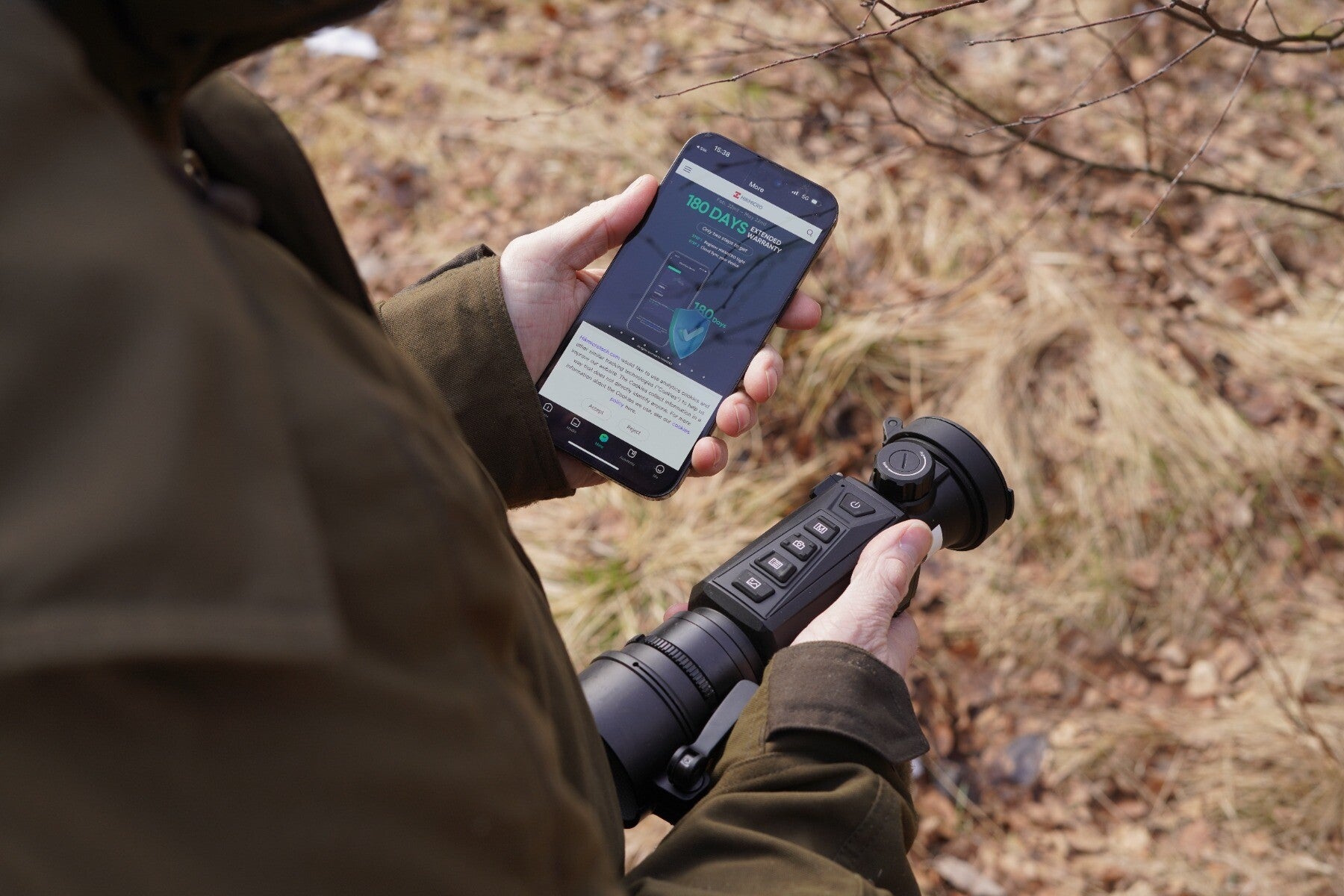

HIKMICRO Sight is a comprehensive APP designed for outdoor devices.
It' s an all-in-one solution that supports preview, remote control, browse & download, sharing incredible moments and firmware updates.

Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Max. Resolution: 256x192
Frame Rate: 50Hz
Pixel Interval: 12μm
Response waveband: 8μm to 14μm
NETD: Less than 35mK (25 °C, F#=1.0)
Lens (focal length): 19mm
Detection Range: 1000m
Focus Mode: Focus Ring
Field of View(H × V), Degrees / m @100m: 9.2° × 6.9°/16.2m × 12.1m
Min. Focusing Distance: 0.5m
Aperture: F1.0
Magnification: 1x

Image Display
Display: 1024x768, 0.39 inch, OLED
Brightness Adjustment: Yes
Palettes: Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 22mm
Eye Relief: 10mm
Tone Adjustment: Cold, Warm

General
Protection level: IP67
Weight: 499g without Battery
Dimension: 184.1 mm x 68.0 mm x 67.1 mm
Working Temperature: -30 °C to +55 °C (-22 °F to 131°F)

System
Record Video: On-board video recording
Capture Snapshot: Yes
Hotspot: Yes
Standby Mode: Yes
Storage: Built-in EMMC (16 GB)
Hot Track: Yes
Reticle: No
Distance Measurement: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Max. Recoil: 1000g/0.4ms
Image Calibration: Yes
Zeroing Profiles: 5

Power Supply
Battery Type: Replacable and Rechargeable Li-ion Battery
Battery Operating Time: ≥6.5h (25 °C, with hotspot off)
Type-C Power Supply: 5 VDC, 2 A Supports external power supply

Accesoires

Adapter en/of Oogrubber voor Thunder op richtkijker te koppelen

• Smartclip AS Adapter M52x0.75 (hiermee kunt u de Thunder zo op uw richtkijker plaatsen)
• Rusan Q-R ARM52 adapter M52x0.75 (hiermee kunt u de Thunder zo op uw richtkijker plaatsen)
• Hikmicro Thunder 2.0 Eye Piece voor Upgrade Clip-on to Handheld (Oogcup Rubber Oculair) (hiermee bruikbaar om als handkijker te gebruiken).

What's in the box

• Hikmicro Thunder 2.0 TE19C
• Quick start guide
• Battery (x2)
• Battery charger
• Type-C Cable
• Dust-free cloth
• Wrench
• Bag
